Scanning Files Attached to Work Items

Attachment scanning is an advanced feature. Contact your administrator about purchasing a license upgrade for Security for Jira.

Security for Jira Cloud can scan files attached to work items for sensitive data, using the same detection as your work item scans: your configured rules, plus AI scanning if you have it enabled.

Attachment scanning is off by default. When it is enabled:

Most common document types are supported (see below).
Images and image-only ("scanned") PDF pages are read using optical character recognition (OCR). English text is recognized.
Files larger than 5 MiB are skipped.
Archives (.zip, .rar, .gz) are not supported yet.

Supported File Types

File Type	File Extensions
PDFs	`.pdf`
Microsoft Word Documents	`.docx`, `.doc`, `.docm`, `.dotx`, `.dotm`, `.dot`
Microsoft Excel Spreadsheets	`.xlsx`, `.xls`, `.xltx`, `.xltm`, `.xlsm`, `.xlsb`, `.xlt`
Microsoft PowerPoint Presentations	`.pptx`, `.ppt`, `.pot`, `.potm`, `.potx`, `.pps`, `.ppsm`, `.ppsx`, `.pptm`
Microsoft OneNote Pages	`.one`
Email Messages	`.eml`, `.msg`, `.oft`, `.pst`, `.mbox`
XPS Documents	`.xps`
Rich Text Documents	`.rtf`
Ebooks	`.epub`
OpenOffice / LibreOffice Documents	`.odt`, `.fodt`, `.ott`
OpenOffice / LibreOffice Spreadsheets	`.ods`, `.fods`, `.ots`
OpenOffice / LibreOffice Presentations	`.odp`, `.fodp`, `.otp`
WordPerfect Documents	`.wpd`, `.wp`, `.wpt`, `.qpw`
Images (read with OCR)	`.bmp`, `.gif`, `.jpg`, `.jpeg`, `.png`, `.tif`, `.tiff`
Other text-based files	Files not listed above, such as `.txt`, `.csv`, `.html`, and source code, are scanned as plain text. Known binary and archive formats (for example audio, video, images, and archives) are skipped.

Office files saved in the ISO "Strict" OOXML format (some .docx, .xlsx, and .pptx files) aren't currently supported. They are skipped and appear as UNSUPPORTED_FORMAT in the coverage export; re-save them in the standard Office format to scan them.

Enabling and Disabling Attachment Scanning

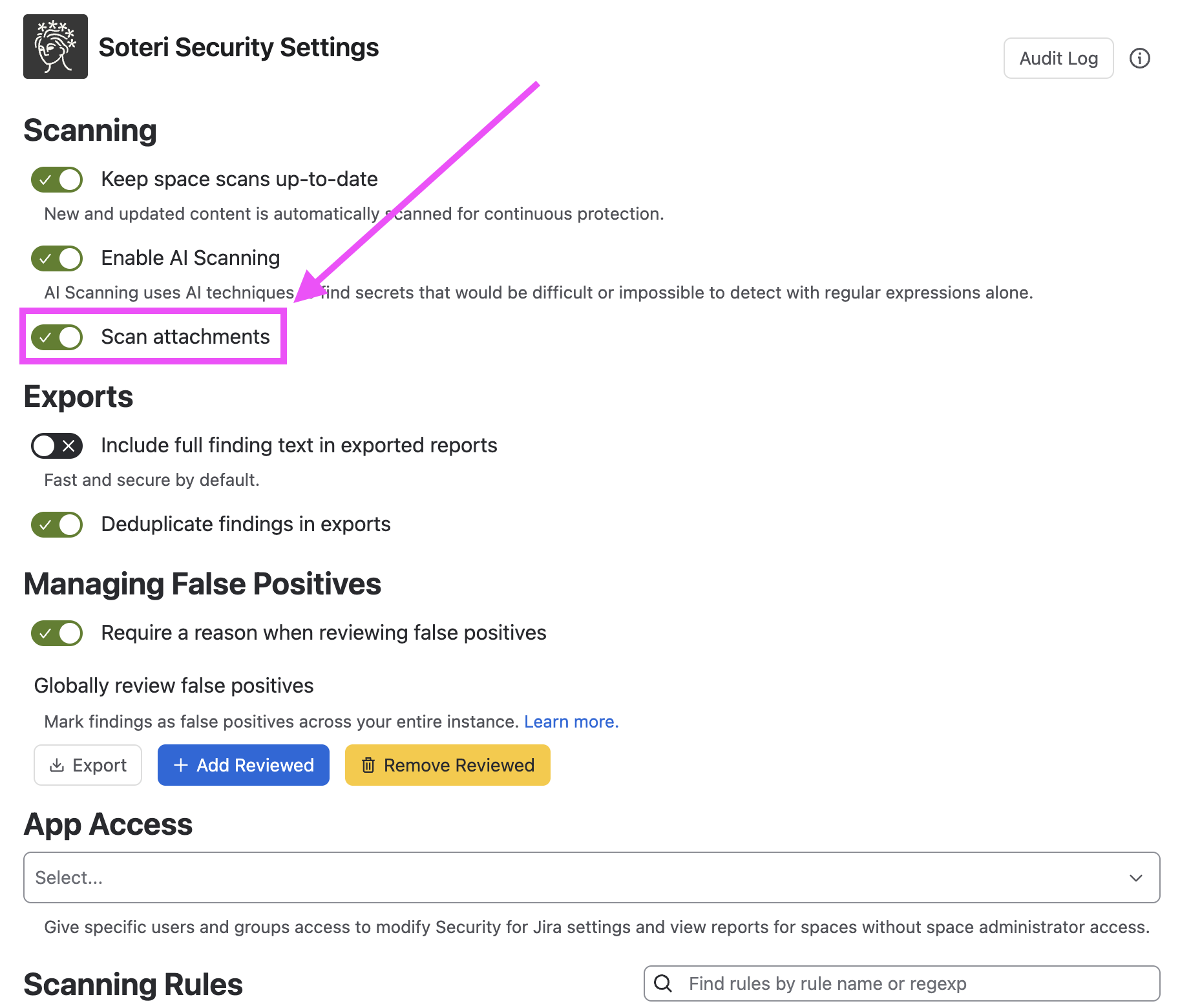

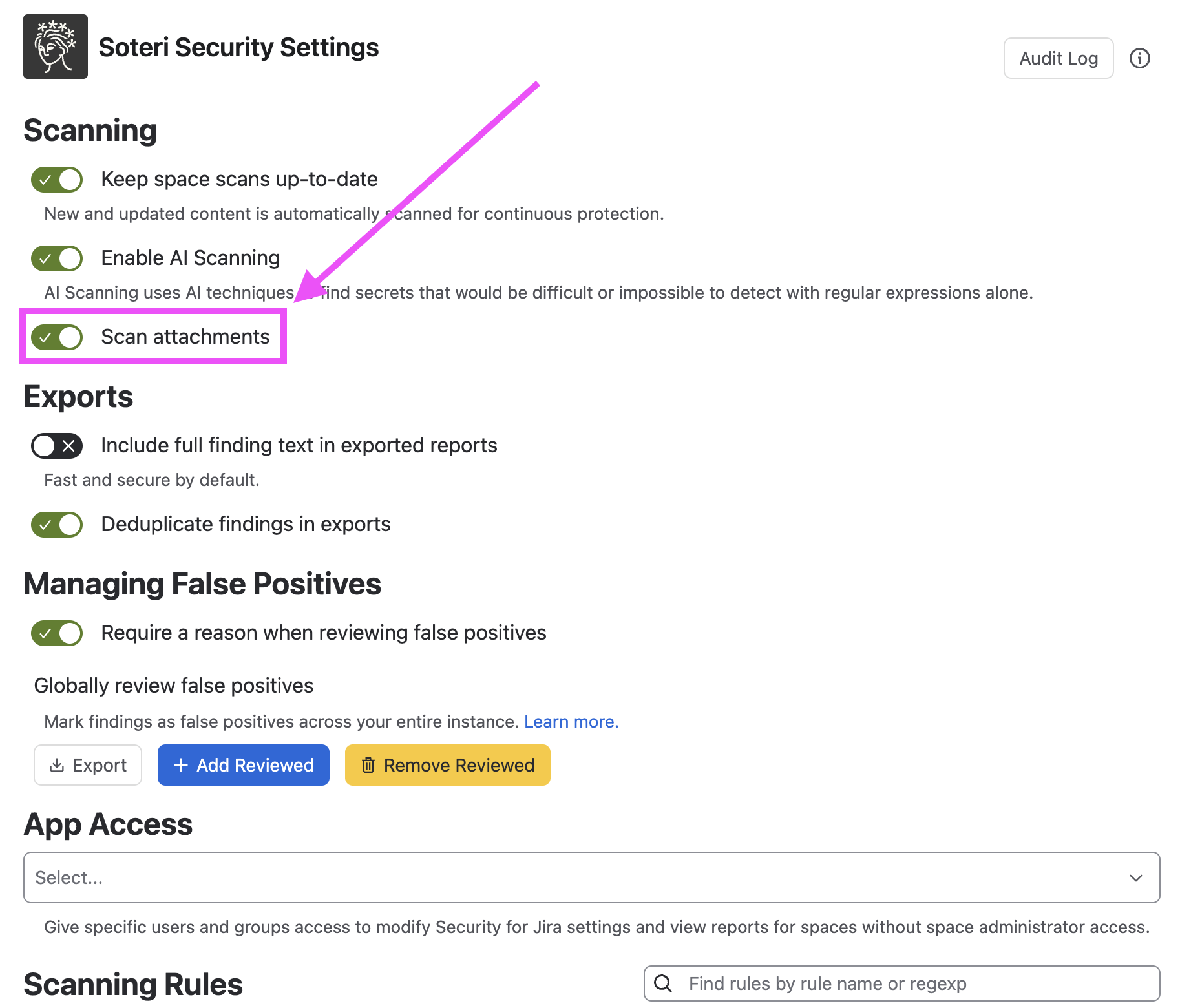

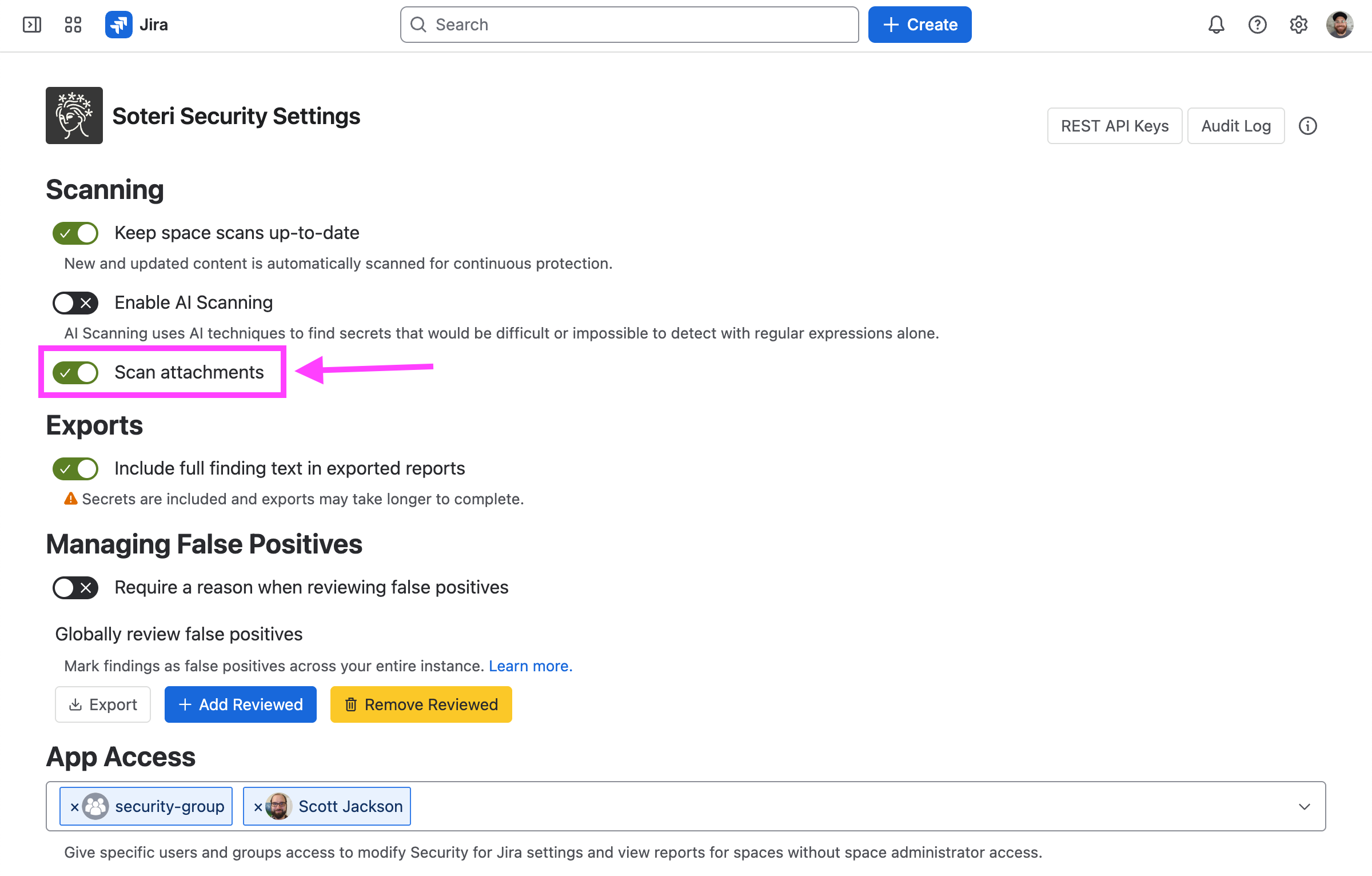

Attachment scanning requires the Advanced edition. To turn it on, open the Security for Jira settings page and enable the Scan attachments setting (it is off by default).

After turning attachment scanning on, run a force rescan to scan attachments on your existing work items. Turning it off, or losing Advanced access, marks the affected work items out of date; retained attachment findings are removed the next time those work items are rescanned.

Exporting Information About Scanned Attachments

To see what happened to each attachment (scanned, skipped, or failed), export the attachment-coverage report. The export is a CSV with these columns:

Work item key
Work item summary
File name
Attachment ID
File size in bytes
Scan state — SCANNED, UNSCANNED, or FAILED (a queued or in-progress attachment shows SCHEDULED or SCANNING)
Unscannable reason — if the file was not scanned, a reason code:
- UNSUPPORTED_FORMAT — the file type can't be scanned (for example an archive, audio or video file, or a vector or design format such as SVG, Visio, or Draw.io — or an Office file saved in the Strict OOXML format).
- ENCRYPTED — the file is password-protected, so it can't be opened for scanning.
- TOO_BIG — the file is larger than the 5 MiB limit (or its extracted text is too large to process).
- PARSE_ERROR — the file couldn't be read because of an unexpected error.
- MALFORMED — the file is corrupt or isn't a valid file of its type.
- EXCEEDED_MEMORY_LIMIT — the file expanded past a safe memory limit while being read (this can happen with highly compressible files).
- EXCEEDED_TIME_LIMIT — reading the file took longer than the time limit.
Error message — an optional message that may explain why an attachment failed to scan.

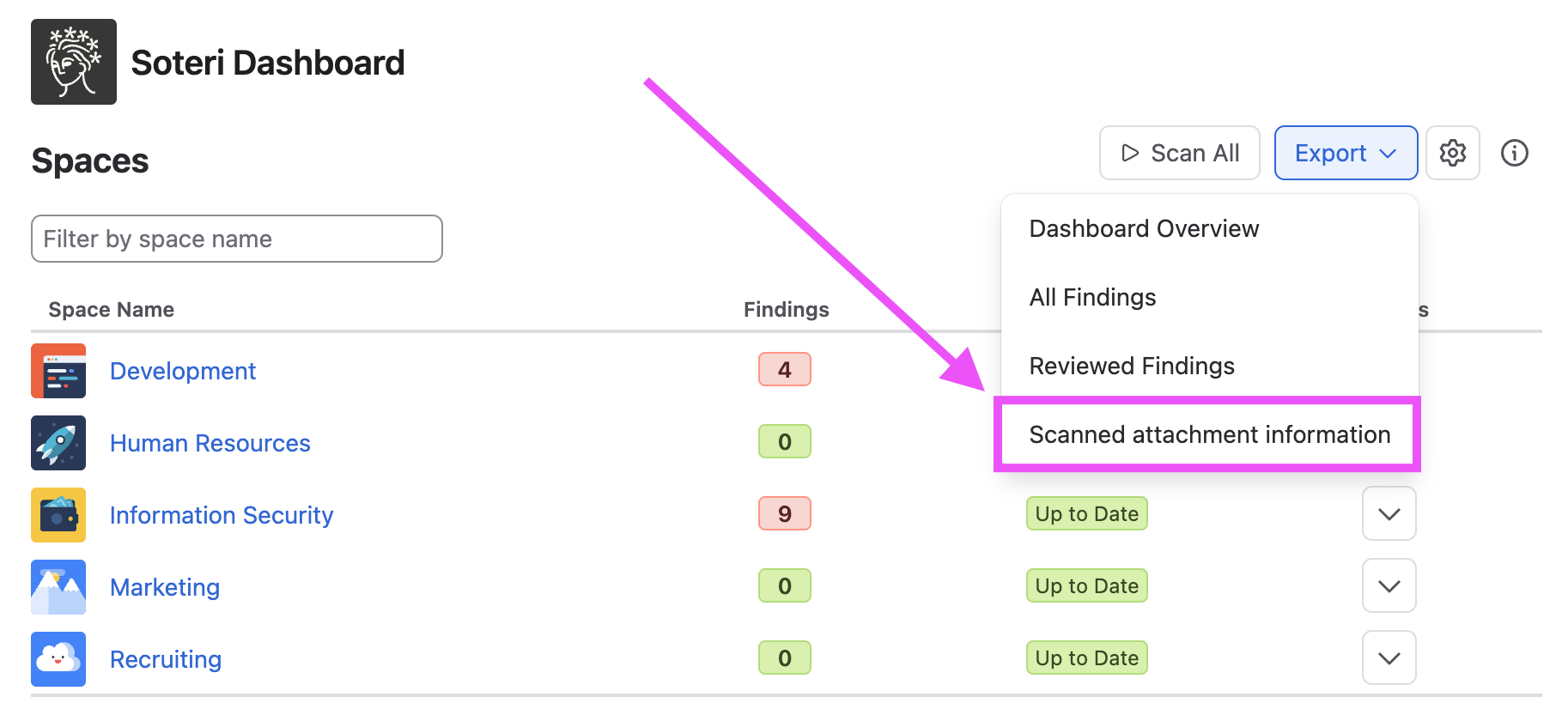

From the Soteri Dashboard, you can export attachment coverage for every space you administer:

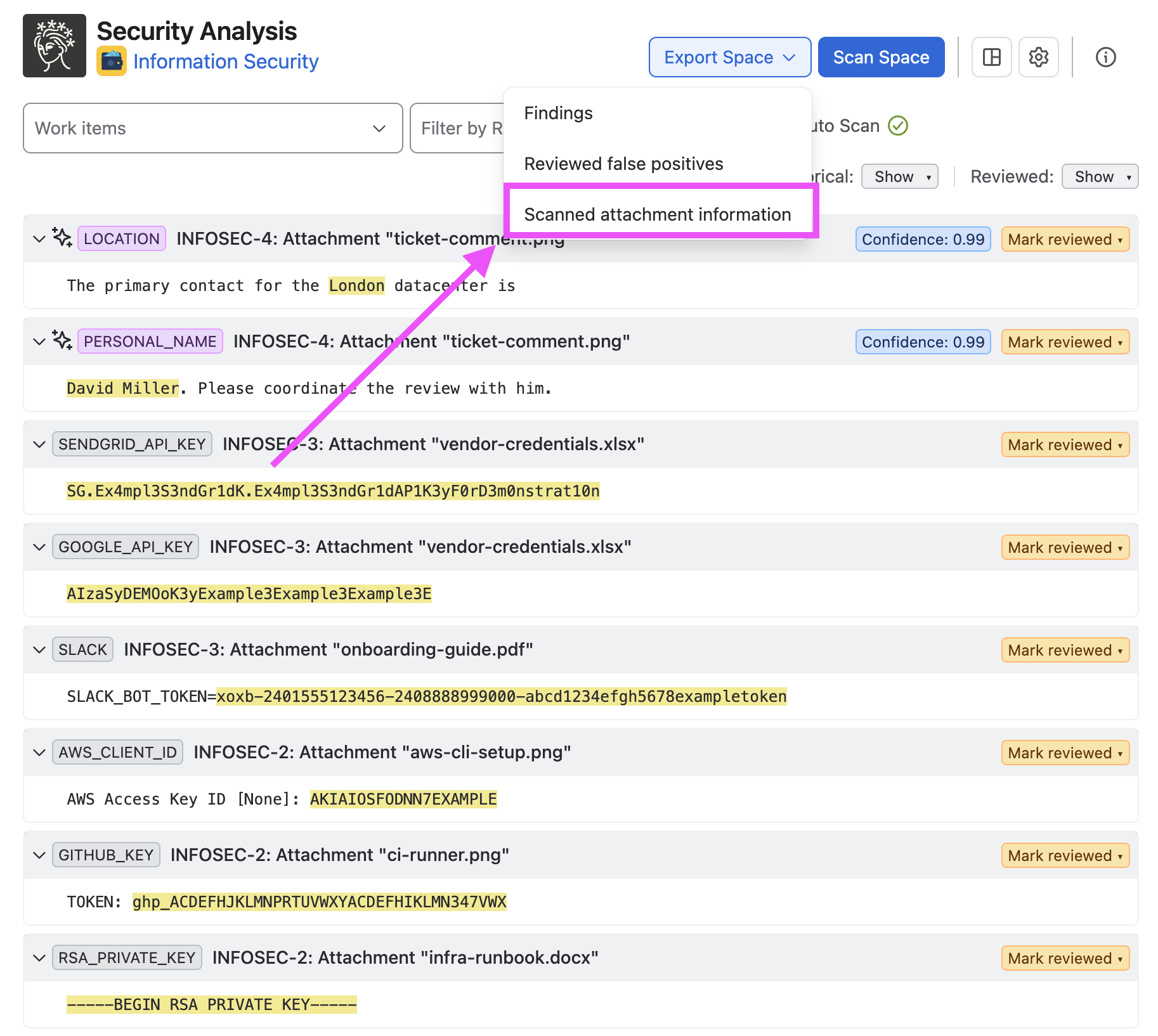

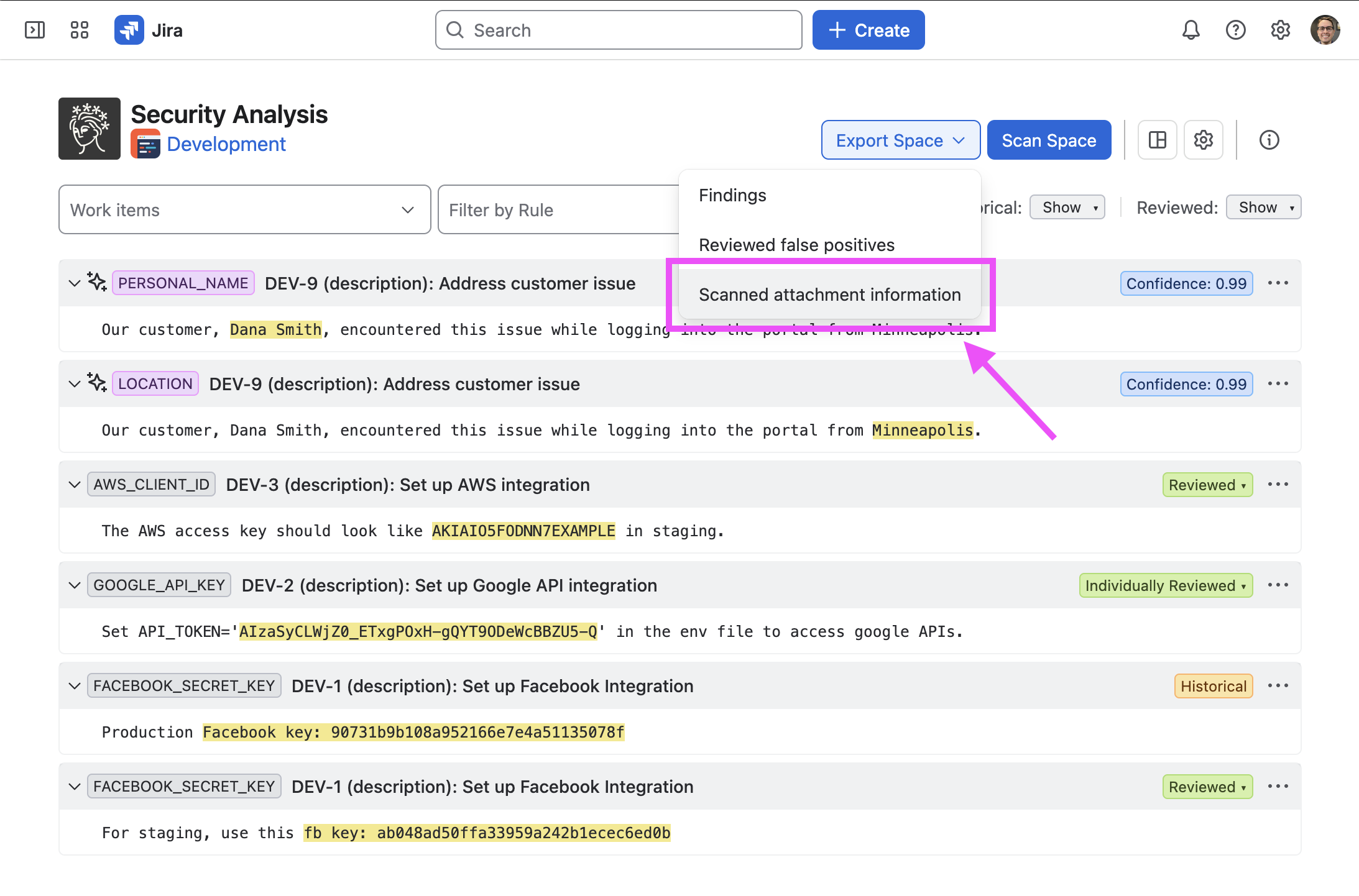

From the Security Analysis page, you can export attachment coverage for a specific space:

Exports run in the background. When the file is ready, the app starts the download automatically.
